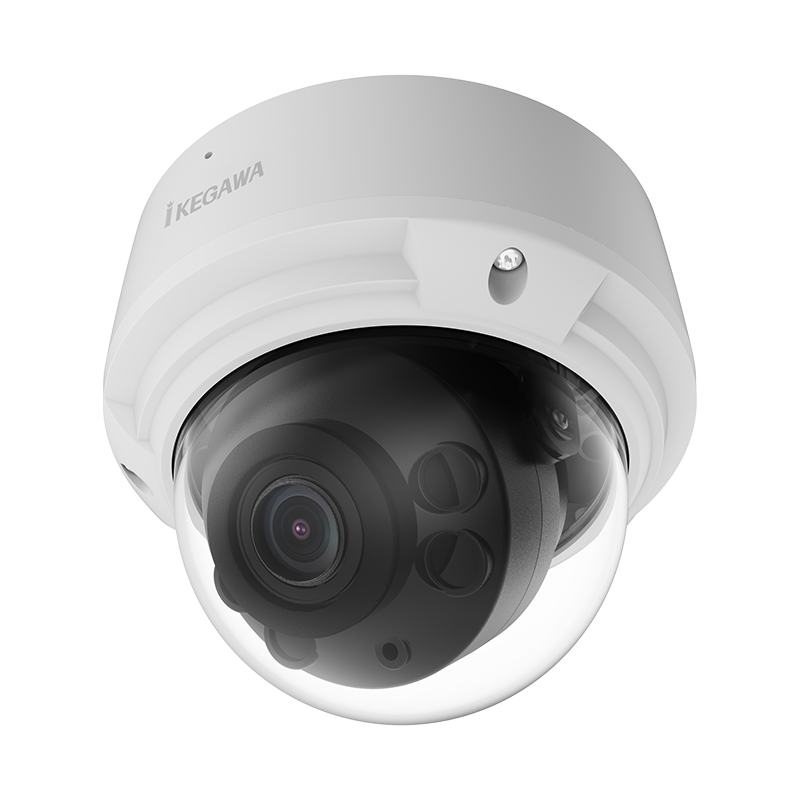

Camera |
Image Sensor | 1/3” Progressive Scan CMOS |
Max. Resolution | 5MP, 2560(H) × 1920(V) |
Electronic Shutter | Auto/Manual, 1/5 to 1/20,000s |
Min. illumination | Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Day & Night | IR cut filter |
Wide Dynamic Range | DWDR |
Angle Adjustment | Pan: 0˚ to 355˚, Tilt: 0˚ to 75˚, Rotation: 0˚ to 355˚ |
Lens |
Lens Type | Motorized focal |
Iris | Fixed Iris |
Focal Length | 2.7 to 13.5 mm |
Max. Aperture | F1.6 |
Field of View (FOV) | H: 90° to 29.8°, V: 48.3° to 16.8° |
DORI Distance |
Detect | 94 to 274 m (308.4 to 899.0 ft) |
Observe | 37.6 to 109.6 m (37.6 to 359.6 ft) |
Recognize | 18.8 to 54.8 m (61.7 to 179.8 ft) |
Identify | 9.4 to 27.4 m (30.8 to 89.9 ft) |
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. |
Illuminator |
Illuminator Type | IR |
Illumination Distance | Up to 40 m (131.2 ft) |
Illumination On/Off Control | Auto/Manual |
IR wavelength | 850 nm |
Intelligent Analytics |
Multi-Object Detection | Supports human/vehicle detection. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, and Smart motion detection. Support alarm triggering by specified target types (human and vehicle) |
People Counting | Supported |
Video and Audio |
Streaming Capability | 3 Streams |
Stream/Frame Rate | Stream1: 2560×1920, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25fps Stream2: D1, VGA, CIF @25fps Stream3: VGA, CIF, QVGA @25fps |
Bit Rate Control | CBR/VBR |
Bit Rate | Stream1: 200 Kbps to 12 Mbps Stream2: 100 Kbps to 6 Mbps Stream3: 100 Kbps to 3 Mbps |
Region of Interest | Off/On (8 areas, Rectangle) |
Smart Encode | Supported |
Audio Compression | G.711 A-law, G.711 μ-law, RAW_PCM |
Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
Image |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Scene Mode | Indoor, Outdoor, Mirror, Corridor mode |
Exposure Mode | Auto, Manual, Shutter priority |
White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
Day/Night Setting | Auto, Day, Night, Timer |
Noise Reduction | 2D/3D DNR |
Image Enhancement | HLC, BLC, Defog, WDR |
Privacy Masking | 4 areas |
Event |
Alarm Triggers | IVS, Motion detection, Disk alarm, Network alarm, Day/Night switch alarm, Abnormal sound detection |
Event Actions | Alarm record, FTP upload, SMTP upload |
Network |
Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
Max Concurrent Streams | 4 channels |
User/Host Level | Up to 32 users; 3 levels: Administrator, Operator, and Media User |
Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Interface |
Network Interface | 1 × RJ45 10/100 Mbps Ethernet port |
Built-in Microphone | Supported |
SD Card Slot | Built-in, up to 1 TB |
Reset Button | Supported |
General |
Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
Power Supply | 12 VDC (-15% to +25%)/PoE (802.3af) |
Power Consumption | Typical: 1.6 W (12 VDC) / approx. 2 W (PoE) Max (IR on): 5 W (12 VDC) / approx. 6.3 W (PoE) |
Operating Temperature | -25°C to 55°C (-13°F to 131°F ) |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66, IK10 |
Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
Material | Aluminum alloy body, bubble: plastic |
Dimensions | φ130 × 113 mm (φ5.12 × 4.45 inch) |
Net Weight | Approx. 0.72 kg (1.59 lb) |
