IK-EL101

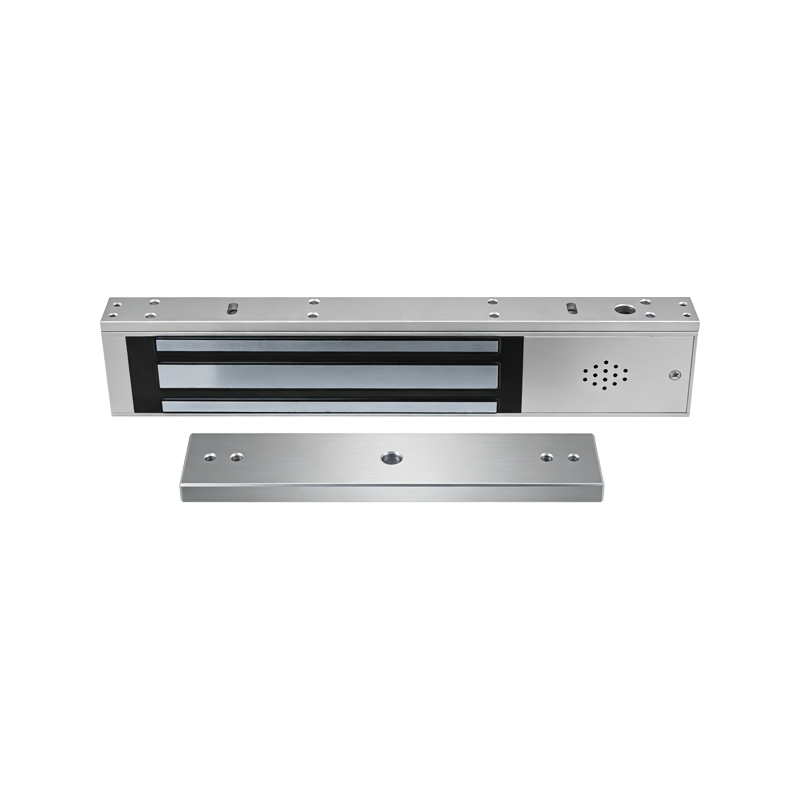

Name: Electric Bolt Lock
Brand: Ikegawa
SKU: IK-EL101

Electric Bolt Lock

Magnetic lock supports up to 280 kg (617 lb) of thrust

Power supply can be 12 VDC or 24 VDC, (default 12 VDC)

Suitable for wooden doors, glass doors and fire doors

Mechanical life: Up to 500,000 operations

High abrasion-resistant construction

Specification

Download

General
Power Supply	12/24 VDC ±10%, 480 mA (12 VDC); 240 mA (24 VDC)
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	0–95% RH (non-condensing)
Material	Lock body & Armature plate: Eco-friendly zinc alloy with electroplated finish Shell: Hard anodized electroplated finish
Dimensions	Lock body: 250 × 48 × 28 mm (9.84 × 1.89 × 1.10 in) Armature plate: 180 × 38 × 11 mm (7.09 × 1.50 × 0.43 in)
Net Weight	2.0 kg (4.41 lb)
LED Indicator	Red: Unlocked; Green: Locked
Mechanical Life	Up to 500,000 operating cycles
Holding Force	Up to 280 kg (617 lb)
Suitable Door Types	Wooden, glass, and fire-rated doors
