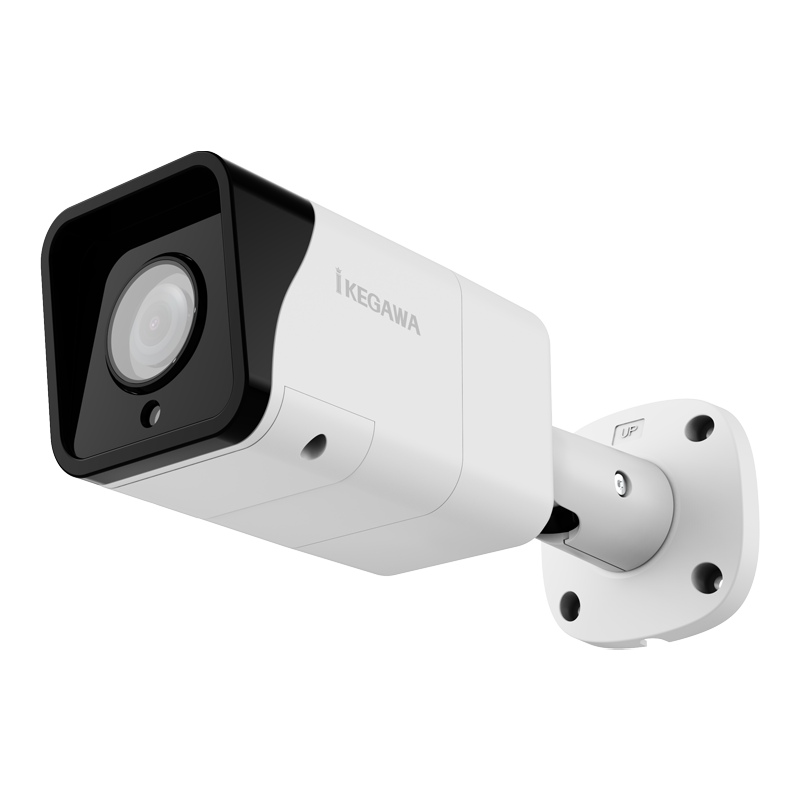

IK-B2705NR-Z

Image Sensor

1/2.8” Progressive Scan CMOS

Max. Resolution

2MP, 1920(H) × 1080(V)

Shutter Speed

1/5 to 1/20,000s

Min. Illumination

Color: 0.01 Lux @ (F1.6, AGC ON),
B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Day & Night

Auto (ICR)

Angle Adjustment

Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚

Lens Type

Varifocal lens, motorized focal

Focal Length

2.7 to 13.5 mm

Max. Aperture

F1.6

Field of View (FOV)

H: 101° to 29.3°, V: 54.4° to 12.6°

Iris

Fixed Iris

Illuminator Type

IR

IR wavelength

850 nm

Illumination Distance

Up to 40 m (131.2 ft)

Illuminator Control

Auto / Manual

AI Multi-Target Detection

Supports face, human, and vehicle detection

Intelligent Analysis

Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, and illegal parking.
- Supports alarm triggering based on specified target types (human/vehicle)

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 Kbps to 12 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 4 configurable zones

Alarm Triggers

IVS, Motion detection, Network alarm, Disk alarm, Day/Night switch alarm

Event Actions

Alarm record, FTP upload, Email notification

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 user levels: Administrator, Operator, and Media User

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest Authentication, Brute-Force Attack Protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

SD Card Slot

Built-in microSD card slot (up to 1 TB)

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%)/PoE (802.3af)

Power Consumption

Typical: 2.5 W (IR off, 12 VDC) / approx. 3.2 W (PoE)
Max: 5.5 W (IR on, 12 VDC) / approx. 6.9 W (PoE)

Operating Temperature

-30 °C to 60 °C (-22 °F to 140 °F )

Operating Humidity

≤ 95% RH (Non-condensing)

Ingress Protection

IP67 (housing)

Certifications

CE-EMC: EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC: 47 CFR Part 15, Subpart B

Material

Aluminum alloy

Dimensions

232 × 80 × 80 mm (9.13 × 3.15 × 3.15 inch)

Net Weight

Approx. 750 g (1.65 lb)

Detect

48 to 140 m (157.5 to 459.3 ft)

Observe

19.2 to 56 m (63 to 183.7 ft)

Recognize

9.6 to 28 m (31.5 to 91.9 ft)

Identify

4.8 to 14 m (15.7 to 45.9 ft)
