Image Sensor

1/1.8” Progressive Scan CMOS

Max Resolution

4MP (2688 × 1520)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0.0005 Lux @ (F1.6, AGC ON)

Day & Night

Auto (ICR)

S/N Ratio

55 dB

Focal Length

6.8–272 mm

Max. Aperture

F1.63–F4.94

Field of View (FOV)

H: 62.3°–2.3°, V: 36.9°–1.3°

Optical Zoom

40×

Digital Zoom

16×

Iris

Auto / Manual

Focus Control

Auto / Manual

AI Multi-Target Detection

- Supports face, human, and vehicle detection with snapshot capture
- Supports human and vehicle attribute analysis
- Supports tracking display modes: Full Frame, Four-Corner Frame, and Mosaic

Attribute Analysis

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
Vehicle Attributes: Type, color, brand, orientation

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection.
- Supports alarm triggering based on specified target types (human/vehicle)

Smoke and Flame Detection

Supported

People Counting

Supported

Number of Streams

3 Streams

Resolution

Stream 1: 2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
Stream 2: D1, VGA, CIF
Stream 3: VGA, CIF, QVGA

Frame Rate

Up to 50/60 fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream 1: 200 Kbps to 16 Mbps
Stream 2: 100 Kbps to 6 Mbps
Stream 3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Up to 8 zones

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)

Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day mode, Night mode, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Wide Dynamic Range

True WDR (120 dB)

Privacy Masking

Up to 40 zones

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt:-90° to +90°

Pan Speed

Pan speed: 0.1° to 40°/s

Tilt Speed

Tilt speed: 0.1° to 40°/s

Preset Accuracy

≤0.3°

Preset

400

Track

6

Scan

12

Tour

12 (up to 32 presets per tour)

Intelligent Tracking

Human/Vehicle auto tracking

Power-Off Memory

Supported

3D Positioning

Supported

PTZ Status Display

Supported

Idle Motion

Automatically runs Preset, Tour, Scan, or Track after a configurable idle time (1–240 min)

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, FTP upload, Email notification, Snapshot, Alarm output, Audible alarm output

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Web Viewer

Chrome, Firefox, Microsoft Edge, IE11 or earlier

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Brute-force attack protection

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS (WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access, system, and event logs

Secure Storage

AES-256 encrypted SD card storage

Supply Chain Security

SBOM

Network Interface

1 × RJ45 10/100 Mbps Ethernet port

Fiber Interface

1 × Gigabit, single-mode, dual-fiber, LC

Audio Interface

1 input, 1 output

Alarm Interface

5 inputs, 1 output

RS-485

1 × RS-485

CVBS Output

1 × BNC

SD Card Slot

Built-in microSD card slot (up to 1 TB)
*Memory card must be factory pre-installed and is not field-installable.

Reset Button

Supported

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

100–240 VAC

Power Consumption

≤ 55 W

Operating Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating Humidity

≤ 95% RH (Non-condensing)

Ingress Protection

IP68

Wiper

Supported

Cable Entry

M25 × 1.5

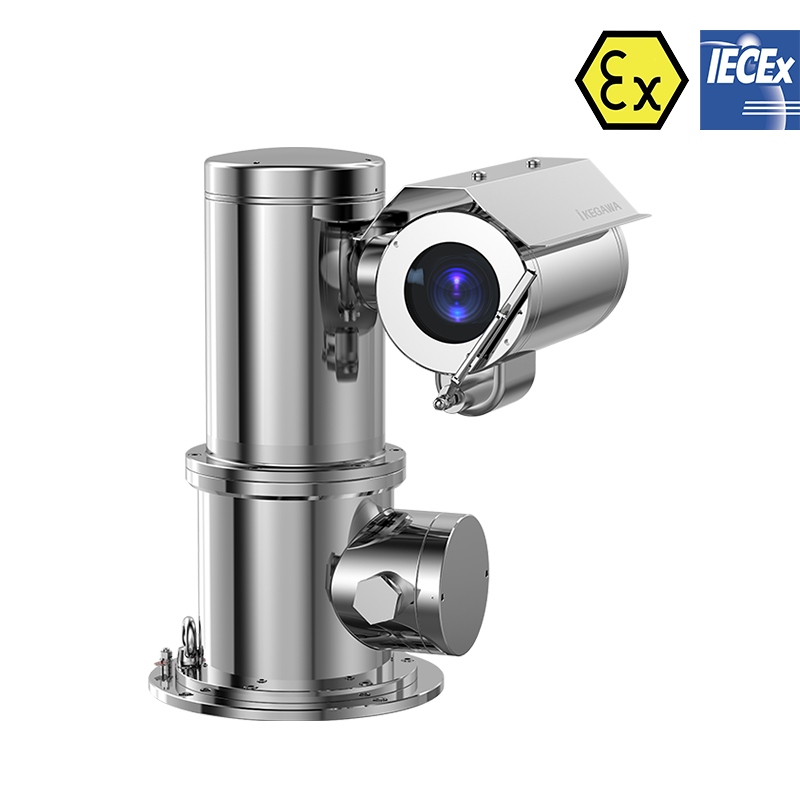

Certifications

ATEX: II 2GD Ex db IIC T6 Gb / Ex tb IIIC T80°C Db;
IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db

Material

SUS316L

Dimensions

389 × 295 × 455.4 mm (15.31 × 11.61 × 17.93 in)

Net Weight

Approx. 36.5 kg (80.47 lb)

Detect

95–5,600 m (312–18,373 ft)

Observe

38–1,520 m (125–4,987 ft)

Recognize

19–760 m (62–2,493 ft)

Identify

9.5–380 m (31–1,247 ft)
