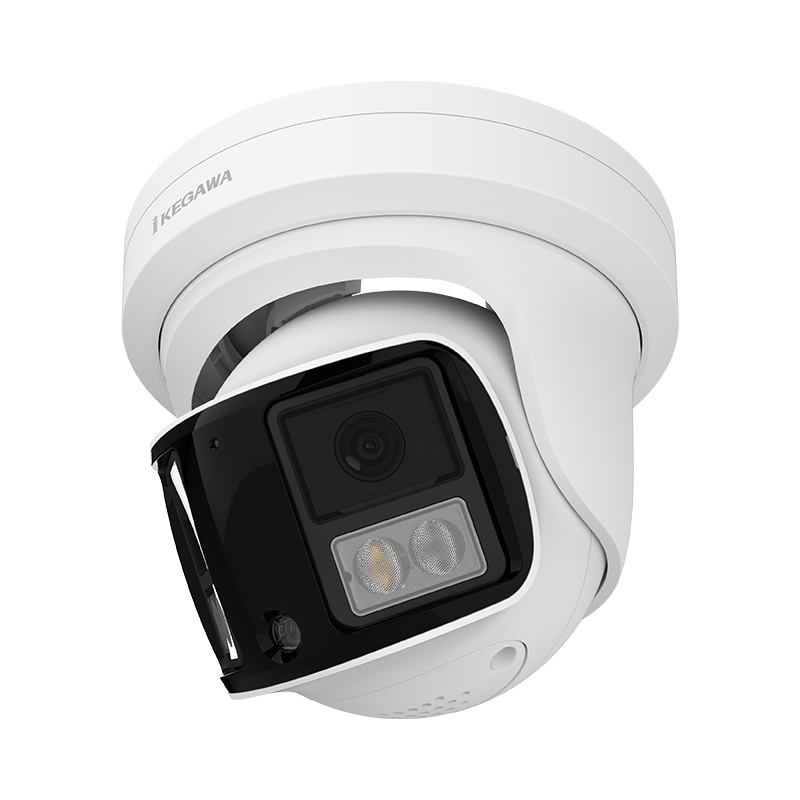

Camera | |
Image Sensor | Dual 1/2.8” Progressive Scan CMOS |
Max. Resolution | 8MP, 4224(H) × 1848(V) |
Electronic Shutter | Auto/Manual, 1/5 to 1/100,000s |
Min. illumination | Color: 0.01 Lux @ (F1.6,AGC ON) B/W: 0.001 Lux @ (F1.6,AGC ON), 0 Lux with light on |
Day & Night | Auto (ICR) |
Wide Dynamic Range | True WDR |
Angle Adjustment | Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚ |
Lens | |
Lens Type | Fixed-focal lens, Dual lens |
Iris | Fixed Iris |
Focal Length | 2.4 mm |
Max. Aperture | F1.6 |
Field of View (FOV) | |
DORI Distance | |
Detect | 53 m (173.9 ft) |
Observe | 21.2 m (69.6 ft) |
Recognize | 10.6 m (34.8 ft) |
Identify | 5.3 m (17.4 ft) |
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. | |
Illuminator | |
Illuminator Type | 2 (IR LED), 2 (Warm Light) |
Illumination Distance | IR distance up to 30 m (98.4 ft) Warm light distance up to 20 m (65.6 ft) |
Illumination Control | IR mode, White mode, Intelligent mode, None |
IR Wavelength | 850 nm |
Intelligent Analytics | |
Multi-Object Detection | Supports face, human, vehicle detection and capture. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, and Smart motion detection. Support alarm triggering by specified target types (human and vehicle). |
People Counting | Supported |
Heat Map | Supported |
Video and Audio | |
Streaming Capability | 3 Streams |
Stream/Frame Rate | Splicing mode: - Stream1: 4224×1848, 3072×1760, 3072×1536, 2880×1440, 2560×1280, 2048×1024 @ 25/30fps - Stream2: 1920×832, 1536×576 @ 25/30fps - Stream3: 1920×832, 1280×560 @25/30fps Multi-channel mode: - Stream1: 2592×1944,2592×1520, 1920×1080,1280×720 @25/30fps, - Stream2: D1, VGA, CIF, QVGA @ 25/30fps |
Bit Rate Control | CBR/VBR |
Bit Rate | Splicing mode: - Stream1: 500 kbps to 16 Mbps - Stream2: 200 kbps to 8 Mbps - Stream3: 200 kbps to 8 Mbps Multi-channel mode: - Stream1: 200 kbps to 16 Mbps - Stream2: 100 kbps to 6 Mbps |
Smart Encoder | Supported |
Region of Interest (ROI) | Supported |
Audio Compression | G.711 A-law, G.711 μ-law, RAW_PCM |
Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
Image | |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Scene Setting | Indoor, Outdoor |
Exposure Mode | Auto, Manual, Shutter priority |
White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
Day/Night Setting | Auto, Day, Night, Timer |
Noise Reduction | 2D/3D DNR |
Image Enhancement | WDR, HLC, BLC, Defog |
Privacy Masking | 4 areas |
Event | |
Alarm Triggers | IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
Event Actions | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, White light alarm output, Red and blue light alarm |
Network | |
Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
Max Concurrent Streams | 10 channels |
User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user |
Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Interface | |
Network Interface | 1 Ethernet (100/1000 Base-T) RJ-45 Connector |
Built-in Microphone | Supported |
Built-in Speaker | Supported |
Audio Interface | 1ch Input, 1ch Output |
Alarm Interface | 1ch Input, 1ch Output |
SD Card Slot | Built-in, up to 1 TB |
Reset Button | Supported |
General | |
Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
Power Supply | 12VDC (-15% to +25%) / PoE (802.3af) |
Power Consumption | Typical: 4.2 W (12 VDC) / approx. 5.3 W (PoE) Max. (IR on + Red/Blue light + Speaker): 8.9 W (12VDC) / approx. 11.2 W (PoE) |
Operating Temperature | |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
Material | Aluminum alloy body, Decoration ring: plastic |
Dimensions | |
Net Weight | 0.93 kg (2.05 lb) |
