Camera | |
Image Sensor | 1/2.8” Progressive Scan CMOS |
Max. Resolution | 5MP, 2592(H)×1944(V) |
Electronic Shutter | Auto/Manual, 1/5 to 1/20,000s |
Min. illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux (F2.0, AGC ON) |
Wide Dynamic Range | True WDR |
Lens | |
Lens Type | Fixed lens, Fixed-focal |
Iris | Fixed Iris |
Focal Length | 2.8 mm |
Max. Aperture | F2.0 |
Field of View (FOV) | H: 105.4°, V: 75.8° |
Intelligent Analytics | |
Multi-Object Detection | Supports face, human, vehicle detection and capture. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
Intelligent Analytics | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection Support alarm triggering by specified target types (human and vehicle) |
People Counting | Supported |
Video and Audio | |
Streaming Capability | 3 Streams |
Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @ 25/30fps Stream3: VGA, CIF, QVGA @ 25/30fps | |
Bit Rate Control | CBR/VBR |
Bit Rate | Stream1: 200 kbps to 12 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
Region of Interest | Off/On (8 Zone, Rectangle) |
Smart Encode | Supported |
Audio Compression | G.711 A-law, G.711 μ-law, RAW_PCM |
Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
Image | |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Scene Mode | Indoor, Outdoor, Mirror, Corridor mode |
Exposure Mode | Auto, Manual, Shutter priority |
White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
Day/Night Setting | Auto, Day |
Noise Reduction | 2D/3D DNR |
Image Enhancement | HLC, BLC, Defog, WDR |
Privacy Masking | 4 areas |
Event | |
Alarm Triggers | IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Abnormal sound detection |
Event Actions | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output |
Network | |
Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
Max Concurrent Streams | 10 channels |
User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user |
Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch Input, 1ch Output |
Alarm Interface | 2ch Input, 1ch Output |
CVBS Interface | Optional |
SD Card Slot | Built-in, up to 1 TB |
Reset Button | Supported |
General | |
Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
Power Supply | 12 VDC (-15% to +25%)/PoE (802.3af) |
Power Consumption | Max 3 W |
Operating Temperature | -30°C to 55°C (-22°F to 131°F ) |
Operating Humidity | Less than 90% RH |
Ingress Protection | N/A |
Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
Casing | Metal + Plastic |

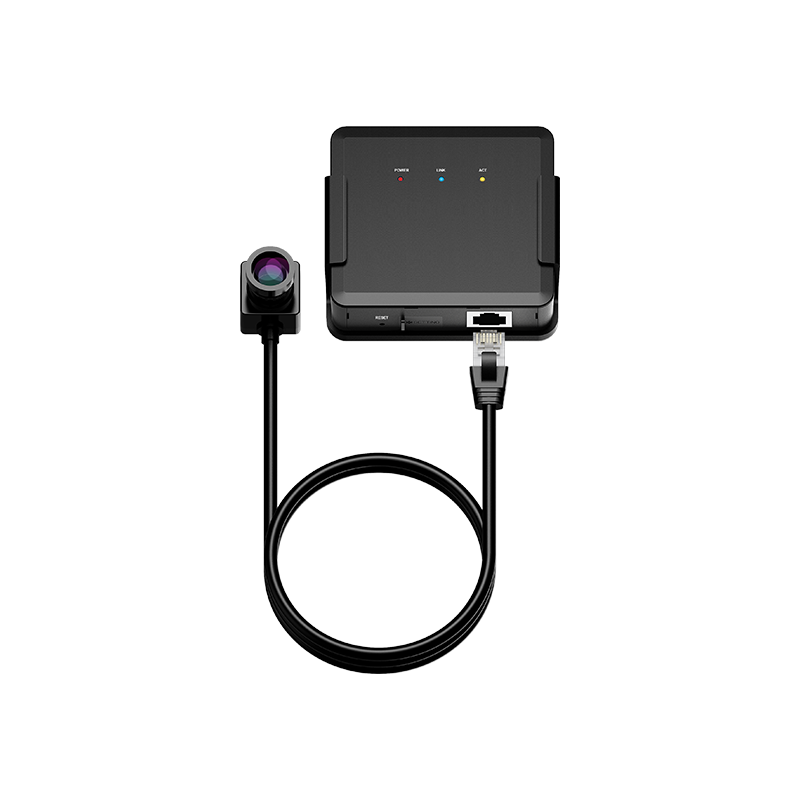

Dimensions | Camera: 35.9 × 22 × 22 mm (1.41 × 0.87 × 0.87 inch) Main body: 86.0 × 75.1 × 33.5 mm (3.39 × 2.96 × 1.32 inch) |
Net Weight | Approx. 0.25 Kg (0.55 lb) |
Length Of Lens Cable | 2 m (6.56 ft) standard length, Customizable 4 m (13.12 ft) Cat 7a Ethernet cable available. |
